Hot Dipped Galvanized Steel Panel Water Pressed Water Storage Tank For HDG Rainwater Irrigation Water Treatment Equipment

1 Cubic Meter
MOQ
$70.00(1 - 9 Cubic Meters) $60.00(>=10 Cubic Meters)
τιμή
Hot Dipped Galvanized Steel Panel Water Pressed Water Storage Tank For HDG Rainwater Irrigation Water Treatment Equipment
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: HL-HDG
product name: rectangular tank
Raw material: Steel panel
Working time: More than 20 years
Process technique: Stamping forming process
Accessories: Stainless steel, hot dip galvanizing
Bottom case: Channel steel
Foundation: Concrete base
Panel size: 1*1m, 1*0.5m, 0.5*0.5m, 1.22*1.22m
Panel thickness: 2mm to 5mm
Volume: 0.125~5000 cubic meter
Βασικές πληροφορίες
Model Number: HL-HDG
Πληρωμής & Αποστολής Όροι
Packaging Details: Naked packing or plywood or iron bracket for rectangular tank 1500 gallon
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Περιγραφή προϊόντων
Products Description

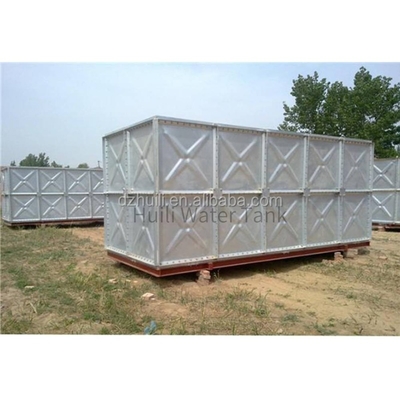

Hot Dipped Galvanized Steel Water Tank

Huili steel water tank adopt Q235B carbon steel as substrate, pressed by advanced integrated molding technique. The pipe terminal will welded on the panel before surface treatment.
Our Advantages

ANTI-CORROSION

The thickness of zinc layer can be up to 70μm, have superior anti-corrosion capability.

RELIABLE QUALITY

Our panel comply the standard of Singapore PSB, SGS, China QSB, etc. The life-span can be over 1/4 century.

DIMENSION FLEXIBILITY

The size of panel can be 1.22*1.22 m, 1*1 m, 1*0.5 m and 0.5*0.5 m, which can assemble kinds of volume from 0.125 m³ to 5000 m³.
That’s extremely convenient to select for you.

CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete
installation plan will be provided.

DURABLE

Using the 1000 T hydraulic press integrated molding, no welding seam at panel corners.

BURY UNDERGROUND

All the HUILI steel material water tank can be bury underground, the thickness of inner structure and panels are thicker than
normal tank.
Product Structure

MATERIAL

1. Q235B raw material complying China GB/T 700-2006 standard.
2. Surface zinc layer 70μm thickness complying GB/T19001-2008 standard.
3. Surface treatment optional: Enamel coating.

SIZE & WEIGHT

1. The size of steel panels are produced by standard with 1.22*1.22 m,1*1 m, 1*0.5 m and 0.5*0.5 m.
2. The panel thickness is depends on tank height.
3. The maximum height available is 5 meters (Need add external reinforcement of I-beam for 5 m height).

APPLICATION
1. Potable Water Storage Tanks
2. Agricultural Irrigation Tanks
3. Septic Tanks and Sewage Tanks
4. Distillation and Process Tanks
5. Fire Reserve Storage Tanks, Swimming Pool Balance Tanks
6. Hot Water Storage Tanks and Chemical Substance Storage Tanks
7. Rain Water Harvesting Tanks,Well Water Tanks,Sea Water Tanks
8. Reverse-Osmosis Water Tanks(water with high or low conductivity)
9. Industrial Process Tanks, Chiller Water Tanks,Cooling Tower Water Tanks
Specification
Panel Dimension
Weight of each panel
2mm
2.5mm
3mm
4mm
5mm
1*1m
17.4kg
22.7kg
26.6kg
36.2kg
46kg
1*0.5m
9.5kg
12.5kg
14.6kg
19.9kg
25.2kg
0.5*0.5m
5.3kg
6.9kg
8kg
11kg
13.9kg
1.22*1.22m
/
33.6kg
39.3kg
53.7kg
68kg
Tank Height(mm)
Thickness of each panel
Bottom
1st layer
2nd layer
3rd layer
4th layer
5th layer
Roof
1000
3mm
3mm
/
/
/
/
2mm
1500
3mm
3mm
3mm
/
/
/
2000
3mm
3mm
3mm
/
/
/
2500
4mm
4mm
3mm
3mm
/
/
3000
4mm
4mm
3mm
3mm
/
/
3500
4mm
4mm
3mm
3mm
2.5mm
/
4000
5mm
5mm
4mm
3mm
2.5mm
/
4500
5mm
5mm
5mm
4mm
3mm
2.5mm
5000
5mm
5mm
5mm
4mm
3mm
2.5mm
The standard tolerance of thickness is 0.25mm. For example, the actual thickness of 3mm is 2.75mm.
Physical properties
Standard requirement
Result
Tensile strength
≥350 MPa
509 MPa
Yield strength
≥220 MPa
414 MPa
Elongation
≥23%
24%
Accessories show

According to HDG water tank capacity,our engineer will provide detailed drawing for your reference.

Customers just need to provide concrete base according to our drawing( Concrete base see below pictures).

Our water tank quotation includes all panels and accessories and C-channel base and some spare parts.

For each our hot dip galvanized water tank project,we provide installation manual.
